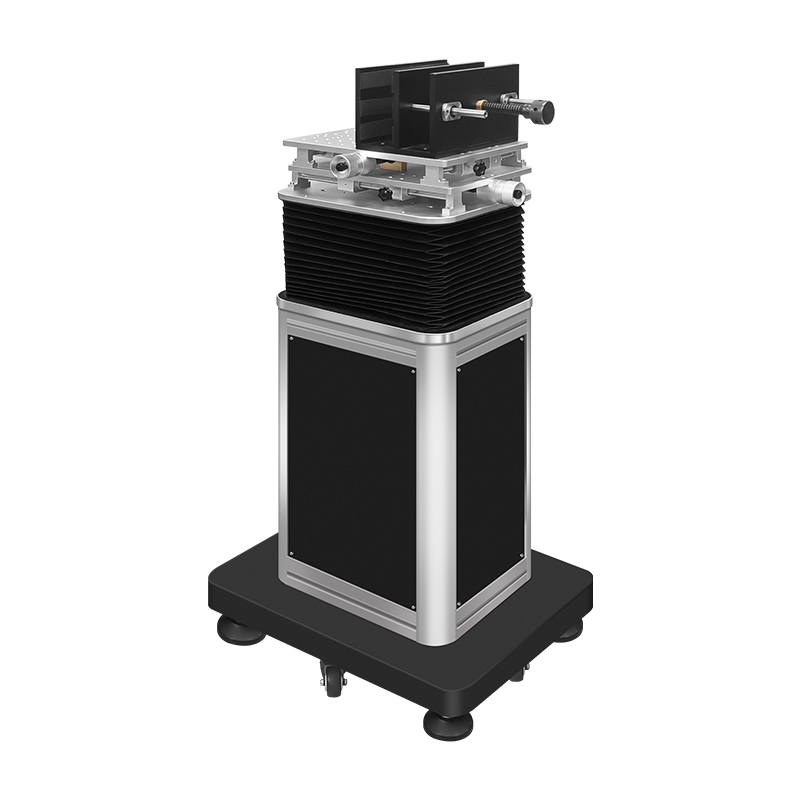

DY-HTJ1 Automatic Special Infrared Aiming Device for Blackbody Furnace

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-HTJ1 automatic black body furnace special infrared aiming device/infrared radiation thermometer mobile bracket is used to fix a variety of infrared instruments and meters platform and used for large stroke, non-quantitative lifting adjustment.

◆ Automatic operation structure, convenient and quick

◆ Provide stable moving lifting platform, provide precise level and height direction of fine-tuning

◆ For infrared thermometers and other radiation equipment detection to provide accurate positioning

◆ Adopt refined lead screw drive and five-axis positioning mechanism to ensure absolute stability, comfort, high precision and large load bearing

◆ Porous design, strong applicability, can be used as mounting surface

◆ Flexible movement, strong and durable, equipped with locking handwheel, safe and reliable

◆ The mesa has the connecting hole with the standard hole spacing, which is convenient to combine with all kinds of infrared instruments and meters

[Technical indicators]

1, Overall size (length, width and height) : 460*260*1280mm (upper limit size)

2, Table Panel: 380*240mm

3, Table left and right stroke: 260mm

4, Upper limit height: 1280mm, lower limit height: 800mm

5, Installation hole: M6

6, Hole spacing: 25mm
